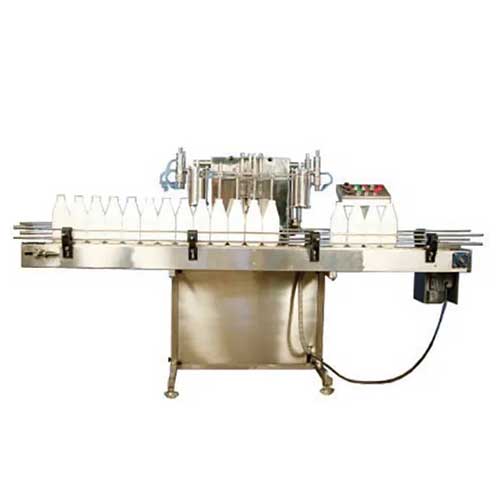

Filltech Packaging Machines makes Automatic Volumetric Liquid Filling Machine works on volumetric principal and is used to fill varieties of liquid into various types of containers with precise accuracy on a continuous conveyor line. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, of SS slat Conveyor, diving nozzle system, indexing mechanism & SS Syringe. The unit shall have provision to fit stainless steel Syringes.
A specially designed synchronized mechanical movement with a conveyor system and a bottle indexing mechanism ensures smooth running of the machine. A ‘NO BOTTLE NO FILL’ mechanism prevents spillage of liquid when continuous flow of bottles is not available. The control panel box shall be provided in front for easy operation.
Bottle / Container/ Jar moves along the conveyor, and get feed below the filling nozzle and exact centering of bottle below nozzles happen with the help of indexing mechanism or we can say as stopper system.
Diving Nozzle System is provided to prevent foaming.
The desire preset volume is Suck & delivery by the help of syringe / pump / cylinder. The volume in the Syringe / Pump / cylinder are set by the means of volume adjustment block using hexagonal bolt fitted below the syringe.
Depending Upon the speed requirement the Automatic Volumetric Liquid Filling machine available in various model as below
2 Head
4 Head
6 Head
8 Head
Depending Upon the type & nature of liquid,the syringe are manufacture as according. Talking into account of various liquid like list below :
Syrup
Honey
Suspension
Pharmaceutical Liquid
Elixir
Cosmetic
Pesticide
Honey
Liquid Blue
Oil
Ointment
Liniment
Lotion
Emulsion etc.
Semi Automatic Liquid Filling machines are available with various filling range of syringe for e.g. 1 ml to 10 ml, 3 ml to 15 ml, 5 ml to 30 ml, 10ml ml to 60 ml, 20 ml to 110 ml, 30 ml to 150 ml, 50 ml to 260 ml, 100 ml to 560 ml, 200 ml to 1000 ml, 0.3 liters to 1.5 liters , 0.5 liters to 2.5 liters , 5 liters.
Also available with attachment base on the need of the product Liquid, costumer requirement, industry standard (namely GMP / Flameproof, etc).
Accuracy : + 1 %
Output : 8000 to 25000 bottles/shift depending upon volume of fill, nature of liquid, shape of container, no of head, etc.
Filling Range : 1 ml to 5000 ml
No bottle no filling system
Self-lubricating UHMW -PE guide profile for low friction wears surface, smooth and noiseless conveying
Easy Control Panel for total control on operation
Minimum changeover time, from one size to another container or fill size
Drip tray under the conveyor
Synchronized two nos. of Alc drive for main motor & conveyor motor
Safety guard for conveyor gear motor
MCB for over load protection and prevention against short circuit
Inbuilt protection against current, voltage fluctuation, short circuit in AC Frequency Drive
Acrylic Cabinet (in case of pharmaceutical, biotechnology, etc. industry)
Glass Cabinet (in case of pesticides, chemical, hazardous chemical, etc. industry)
Float Tank
Automatic chain washing system for conveyor belt (in case of paint industry)
